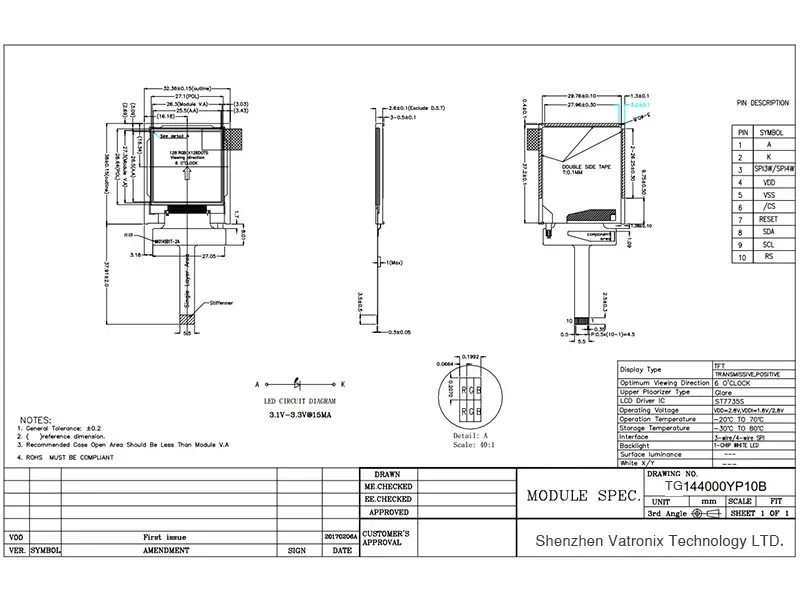

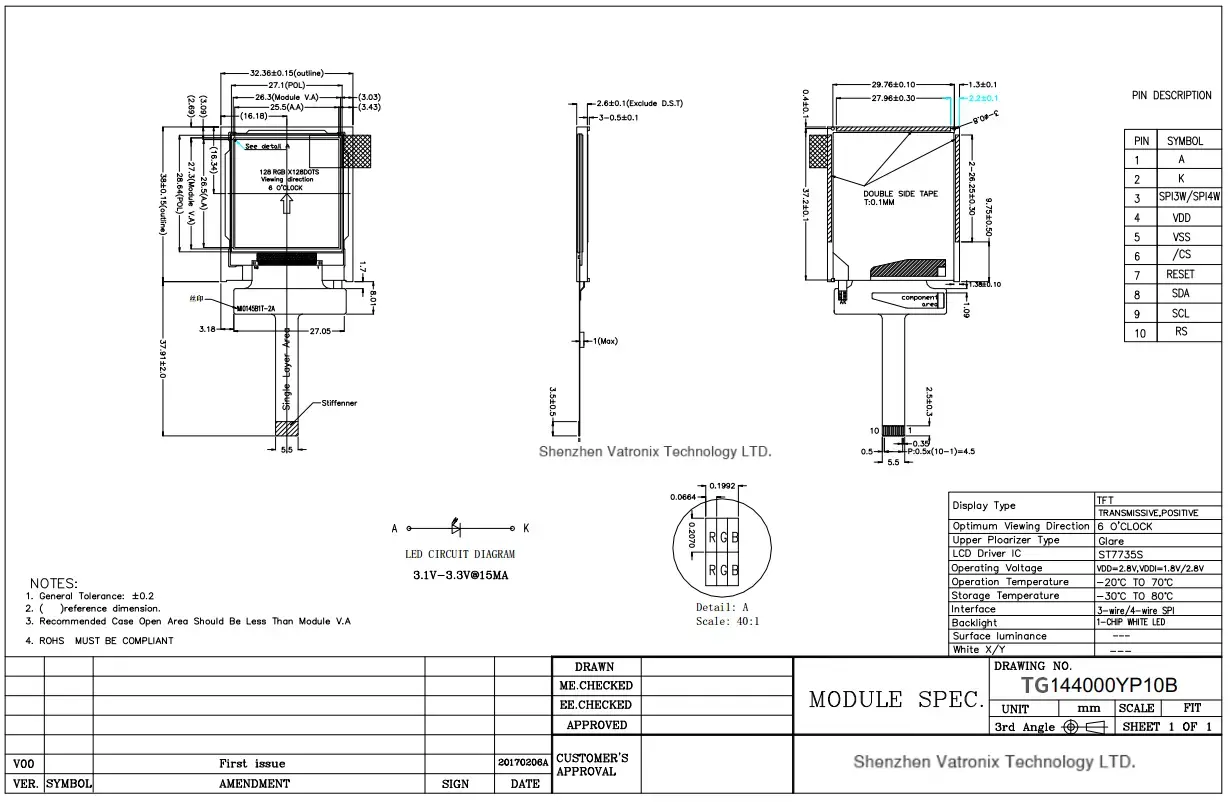

TG144000YP10B
| Item | Vatronix 1.44inch 128×128 lcd display |
| Model No | TG144000YP10B |
| Resolution | 128×128 |
| Outline Dimension | 32.6(W)×38.00(H)×2.6(T) |
| Active Area(mm) | 25.50(W)×26.50(H) |
| Interface | 3-wire SPI / 4-wire SPI |
| Viewing Angle | 6 o’ clock |
| Driving IC | ST7735S |
| Display Mode | Normally White,Transmissive |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 240nits |
| Touch screen | Resistive and capacitive touch screen |
