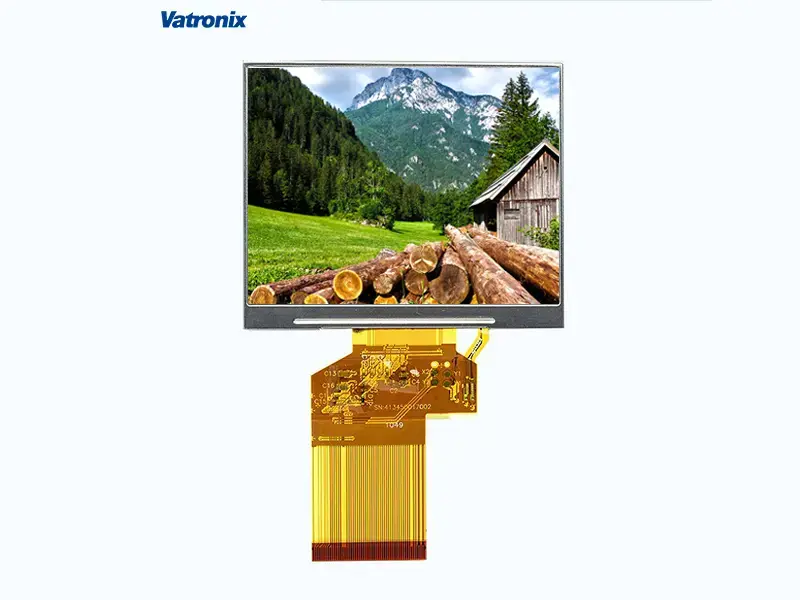

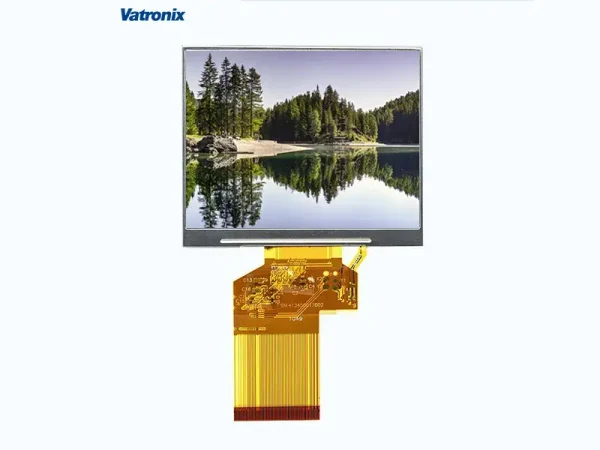

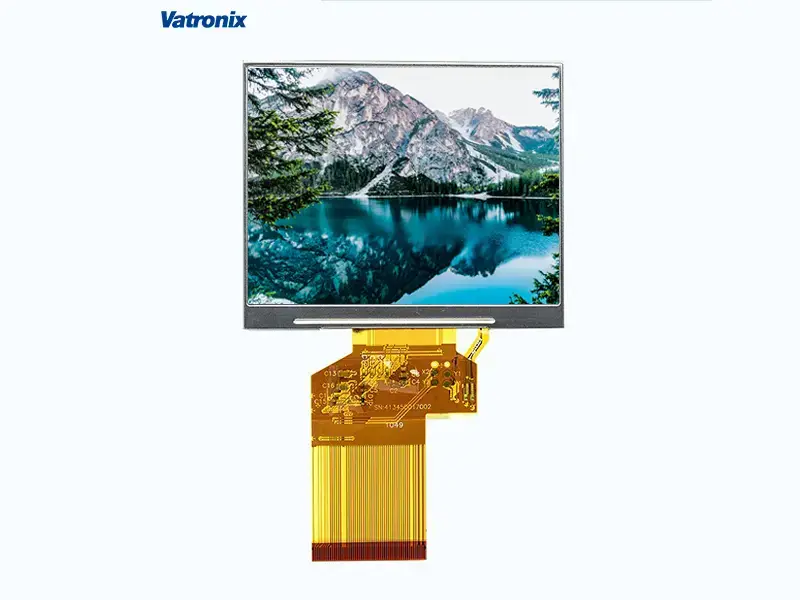

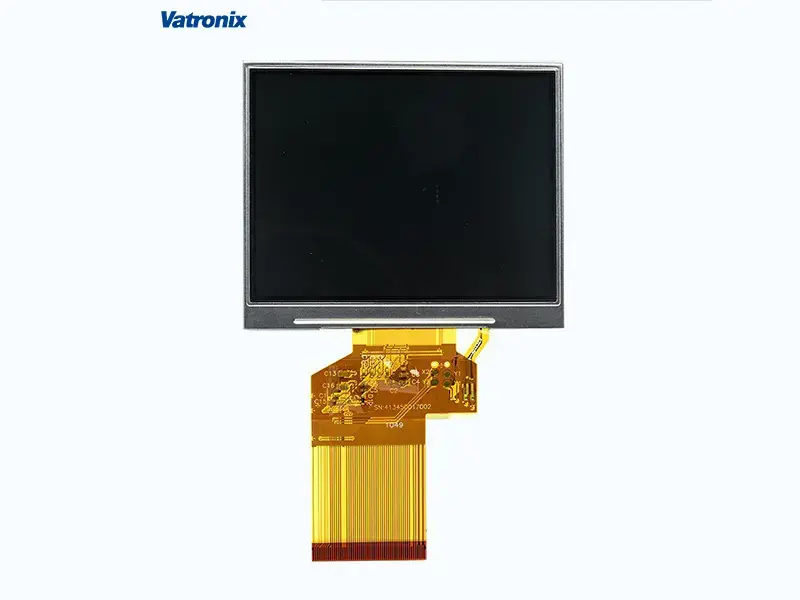

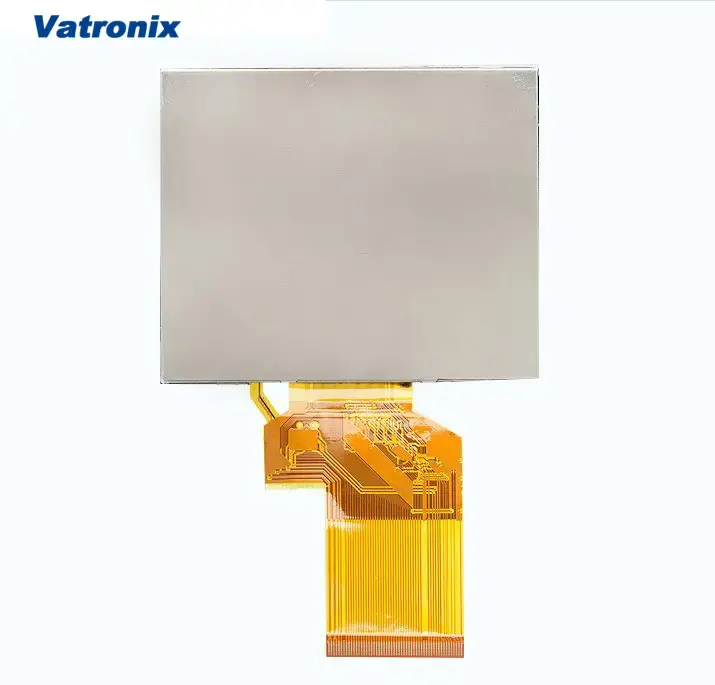

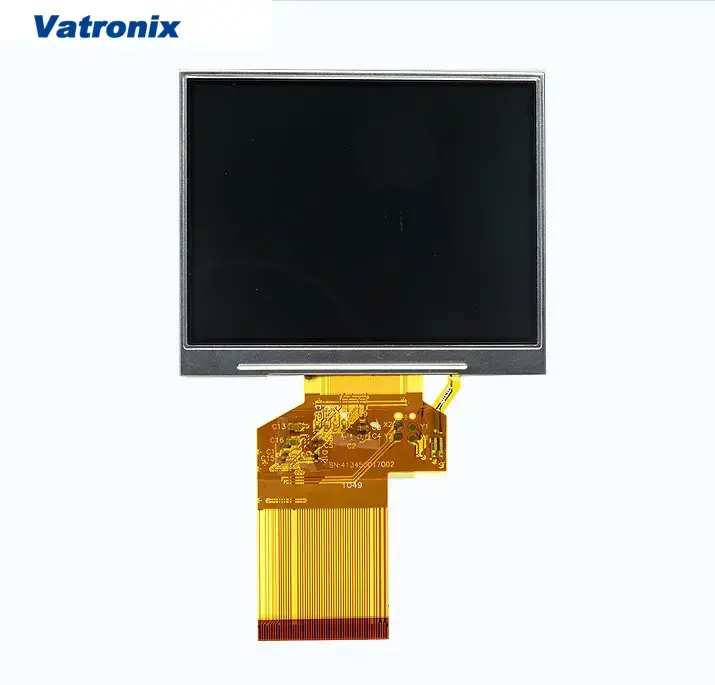

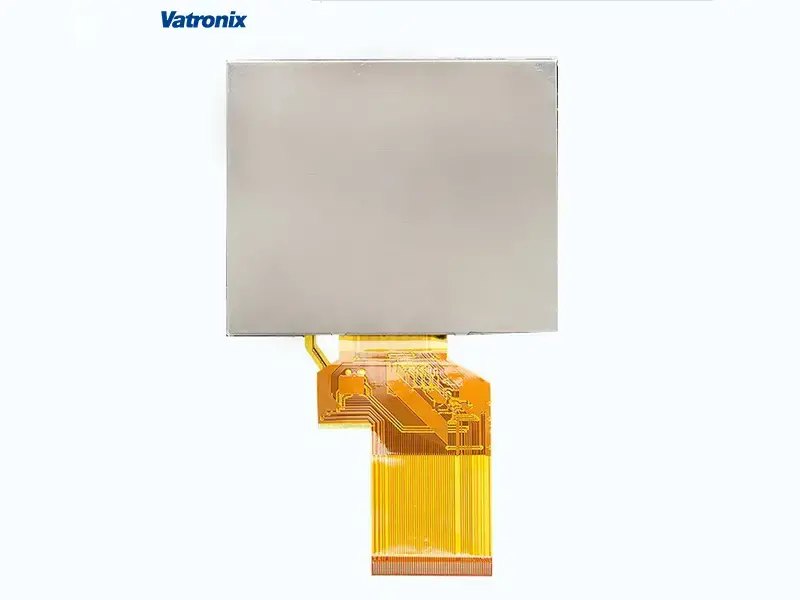

Item 3.5 inch 320×240 IPS TFT LCD
Model No TG03503LZR54D-V01
Resolution 320×240

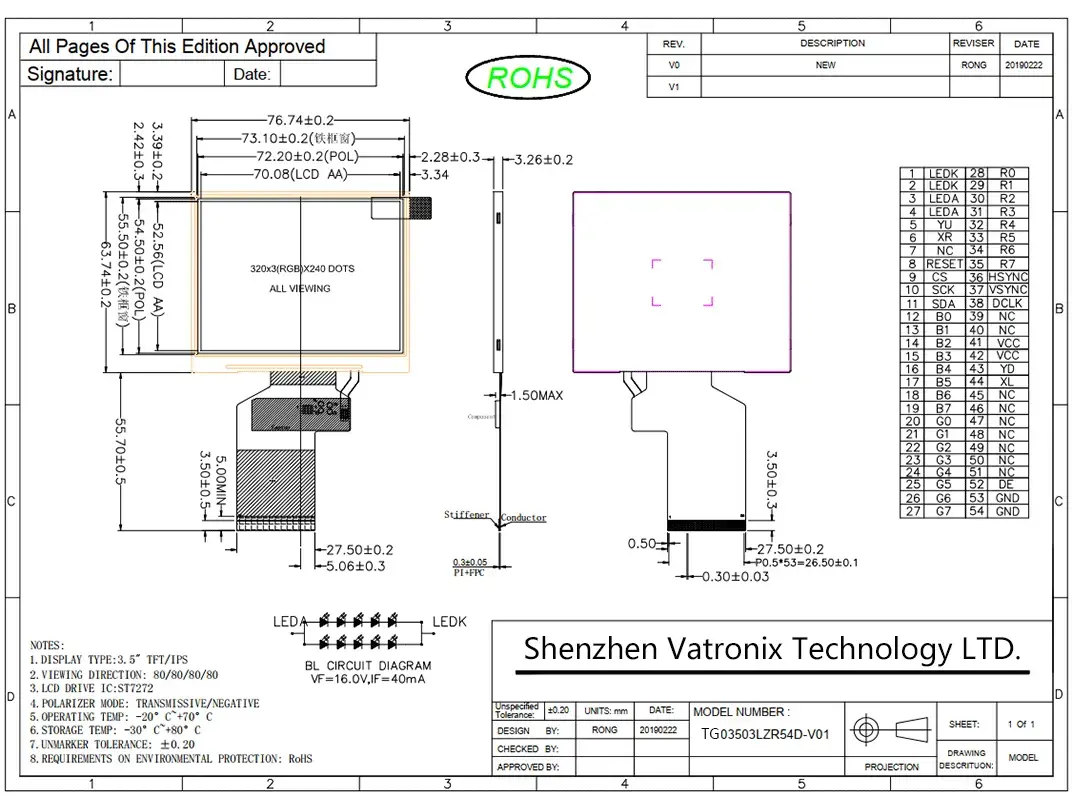

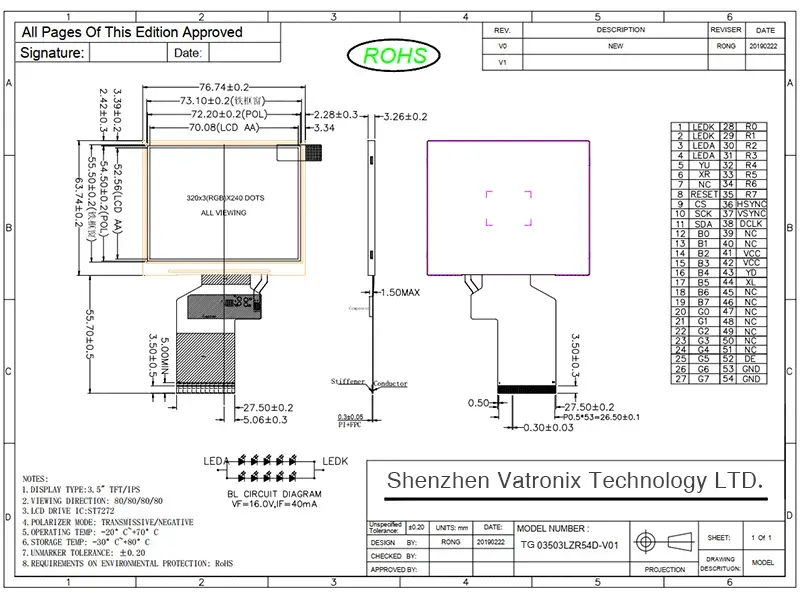

Outline Dimension 76.70(W)×63.70(H)×3.26(T)
Active Area(mm) 70.08(W)×52.56(H)
Interface 24-bit RGB interface
Viewing Angle Full viewing angle / IPS
Driving IC ST7272
Display Mode TFT/TRANSMISSIVE
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 500nits
Touch screen Resistive and capacitive touch screen
