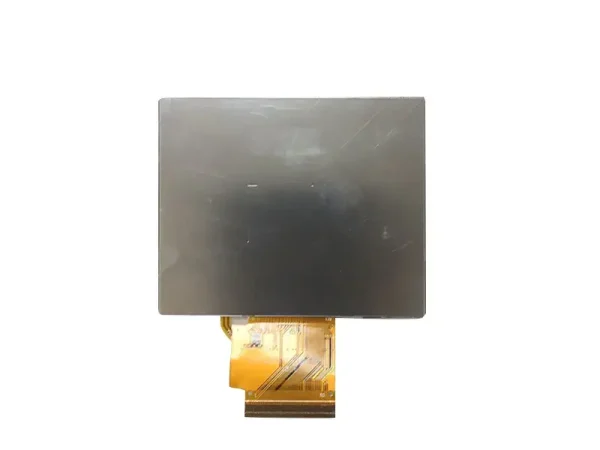

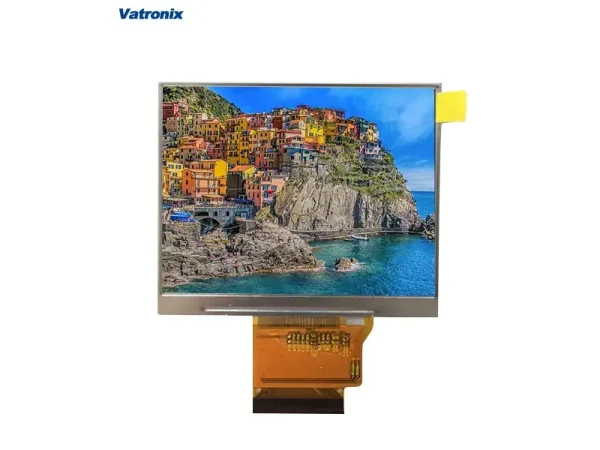

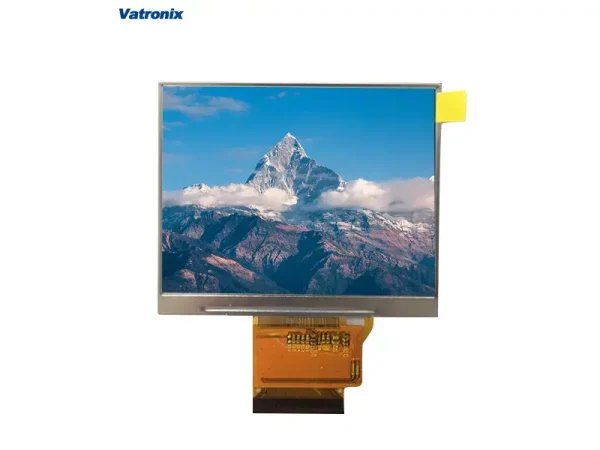

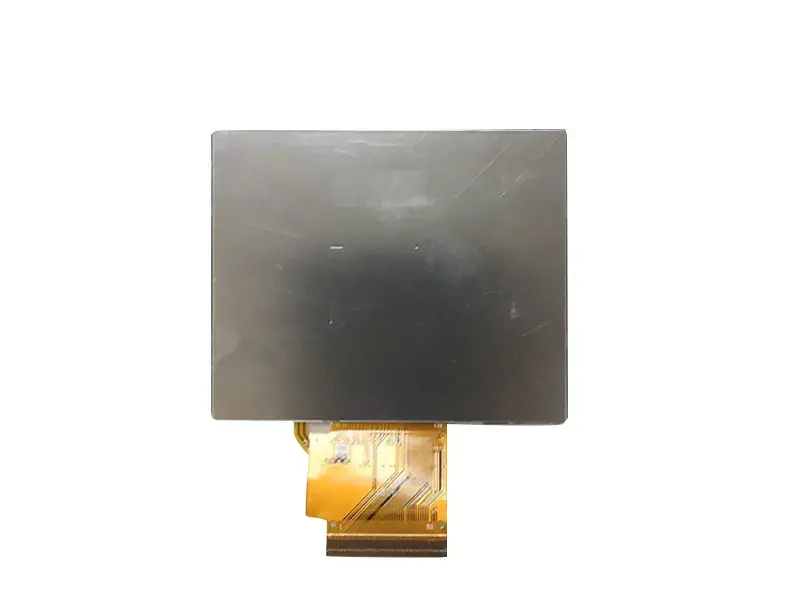

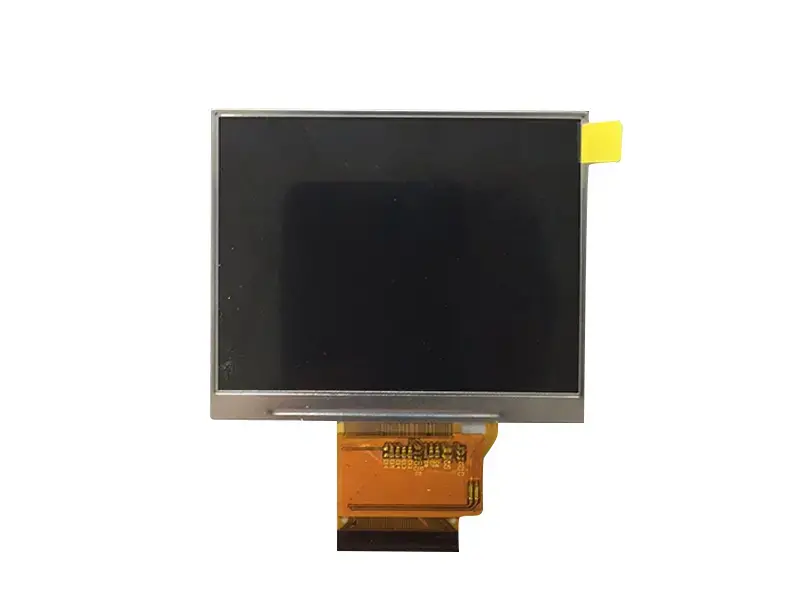

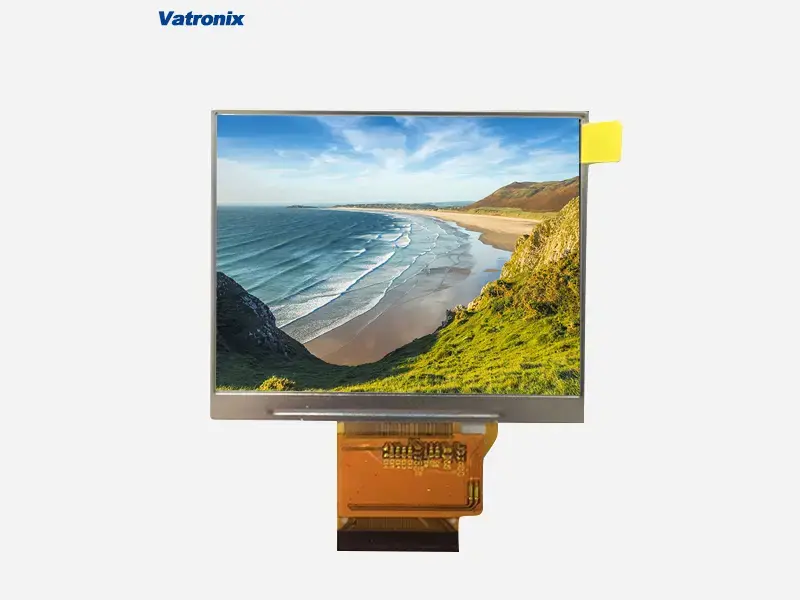

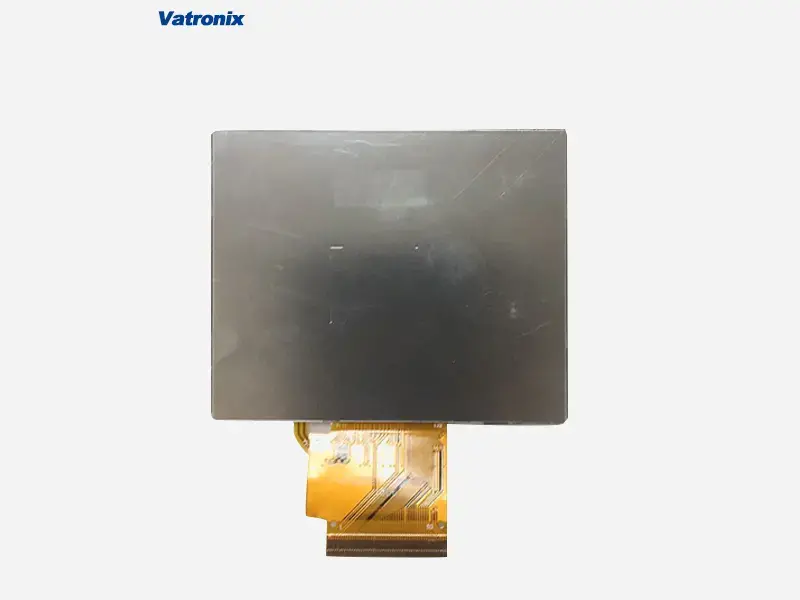

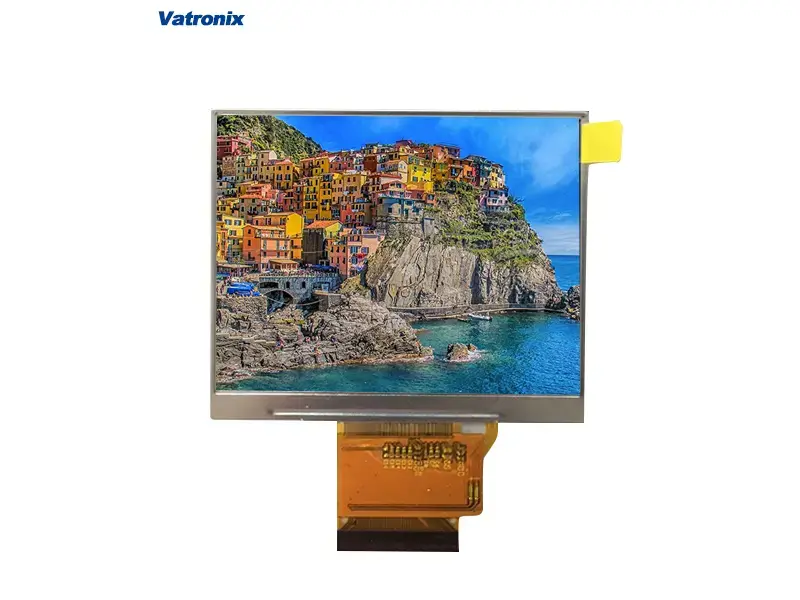

Item 3.5 inch 320×240 TFT LCD display
Model No TG03501LZR50C
Resolution 320×240

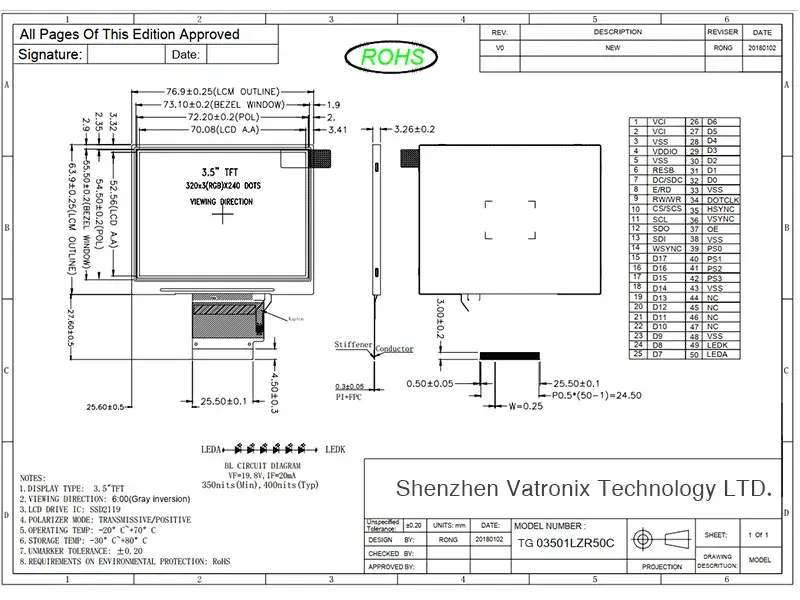

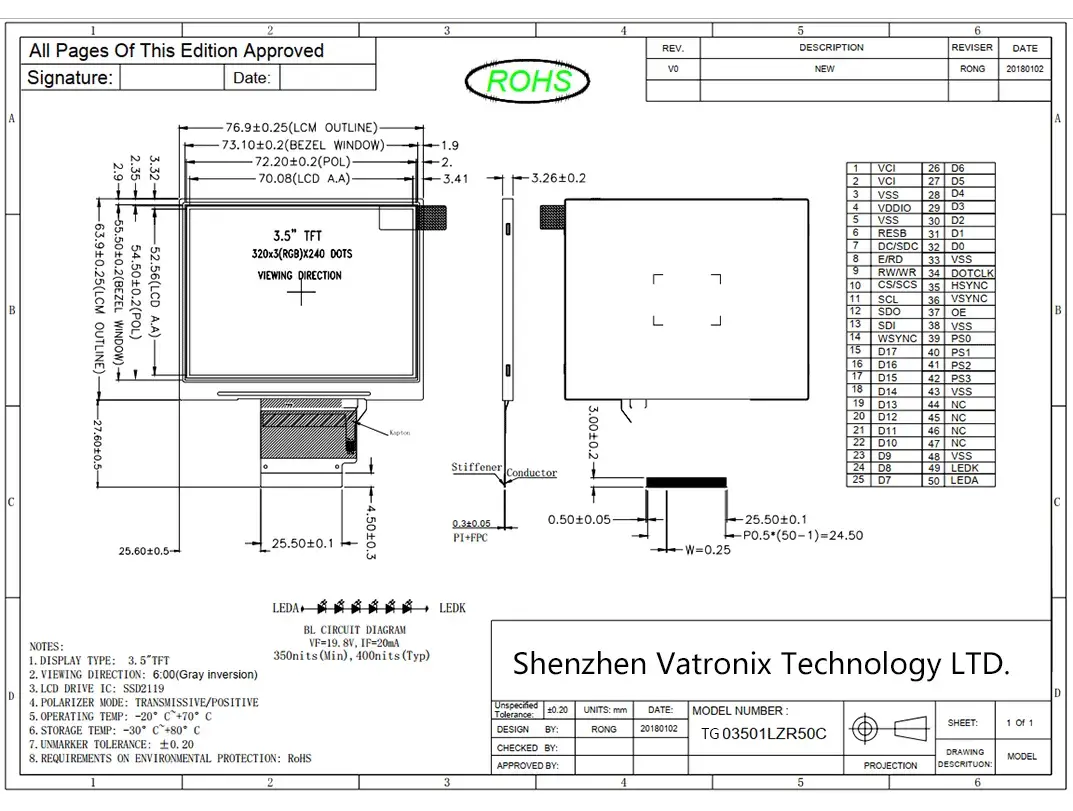

Outline Dimension 76.90(W)×63.90(H)×3.26(T)
Active Area(mm) 70.08(W)× 52.56(H)
Interface 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 6800/8080-series system interface 6-/9-/16-/18-bit RGB interface
Viewing Angle 12 O’clock
Driving IC SSD2119
Display Mode TFT/TRANSMISSIVE
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 400nits
Touch screen Resistive and capacitive touch screen
