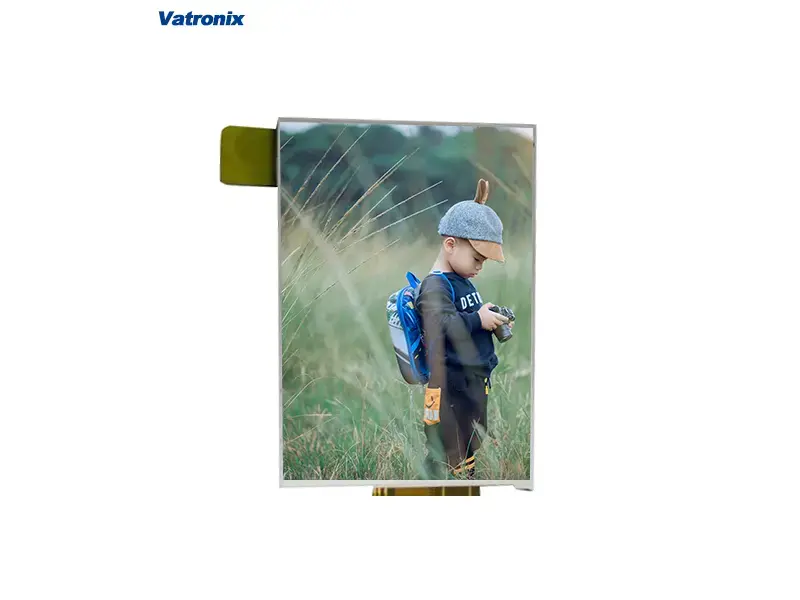

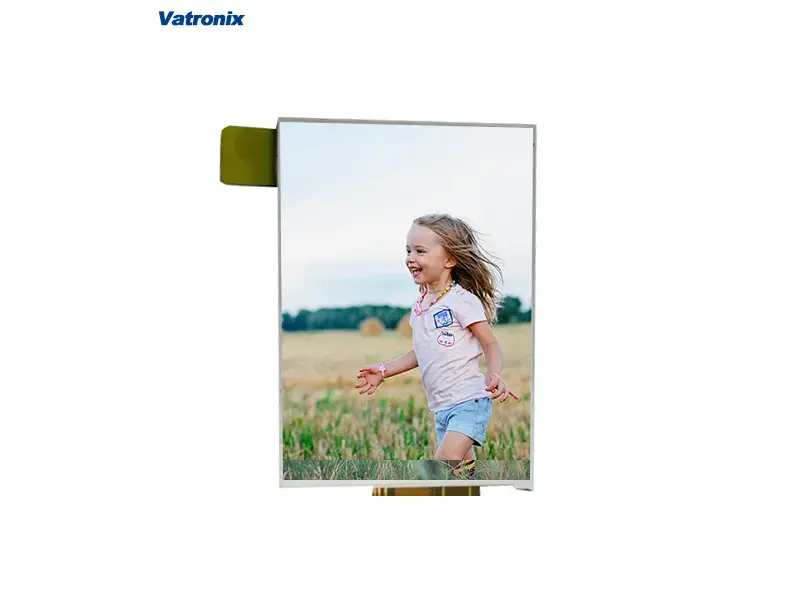

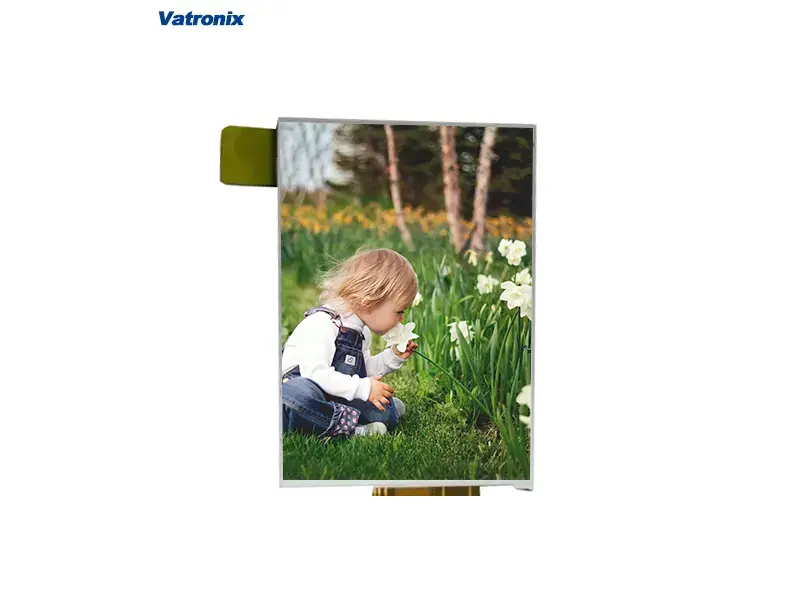

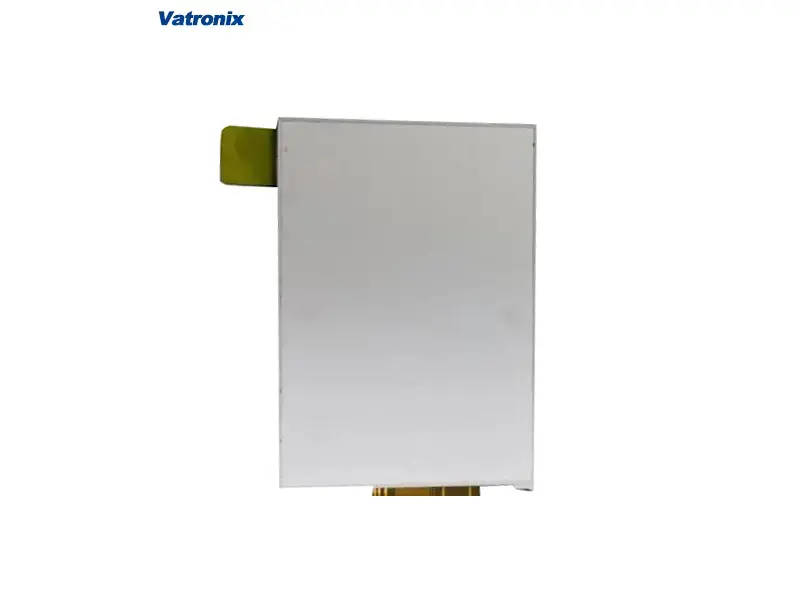

Item 2.4inch rectangle TFT LCD module
Model No PV02004LZR50G
Resolution 240×320

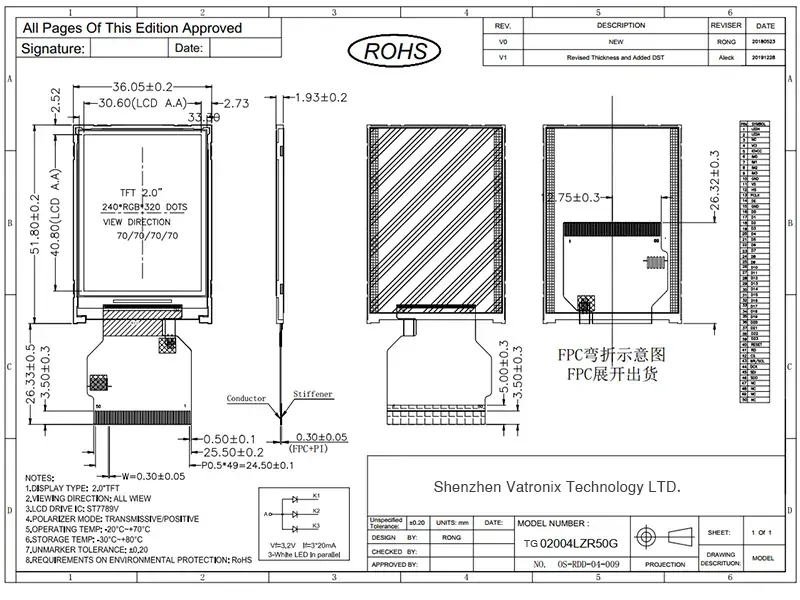

Outline Dimension 36.05(W)x51.80(H)x1.78(T)
Active Area(mm) 30.60(W)x40.80(H)
Interface i80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface
Viewing Angle All
Driving IC ST7789V
Display Mode Transmissive / Normally Black
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 400nits
Touch screen Resistive and capacitive touch screen
