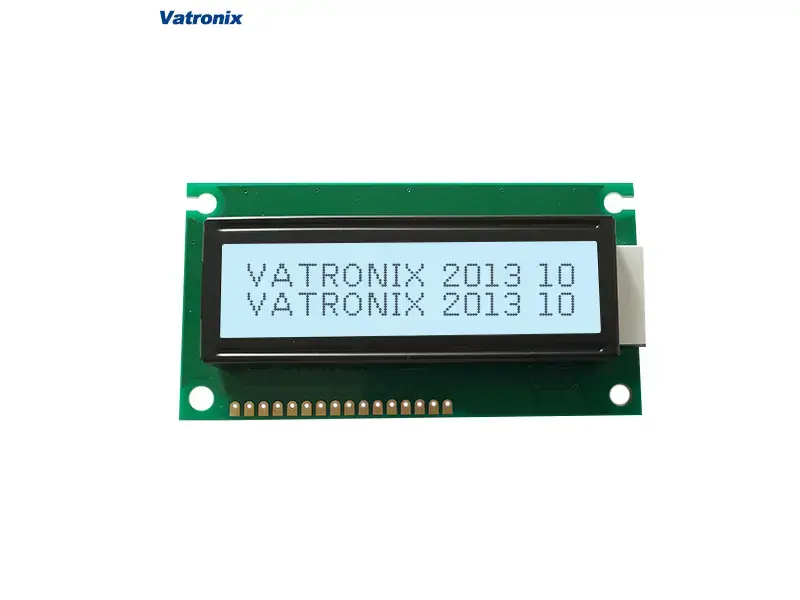

TC1602C2-SDYFSG ,monochrome lcd panel

TC1602C2-SDYFSG ,monochrome lcd panel

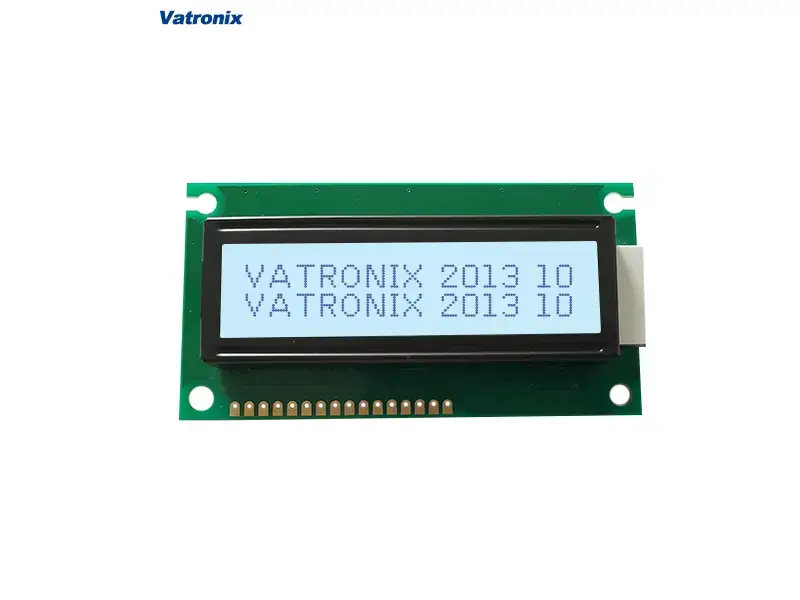

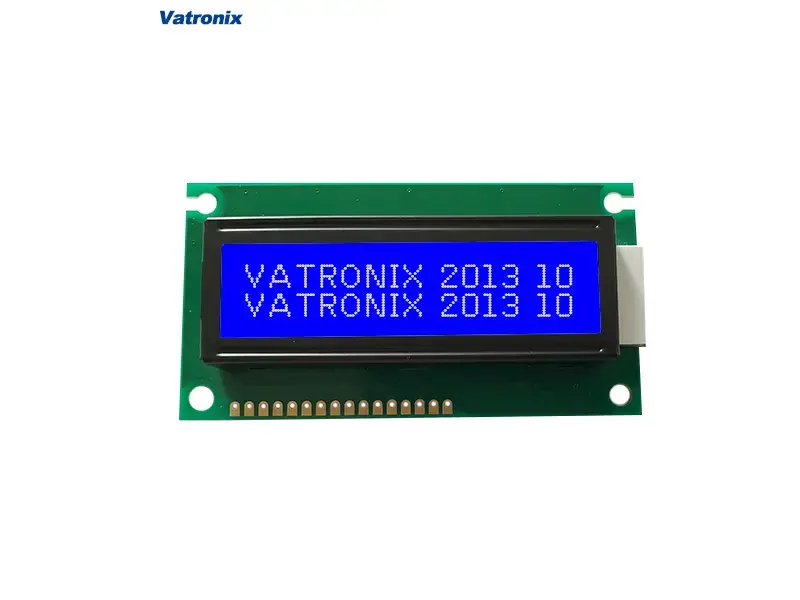

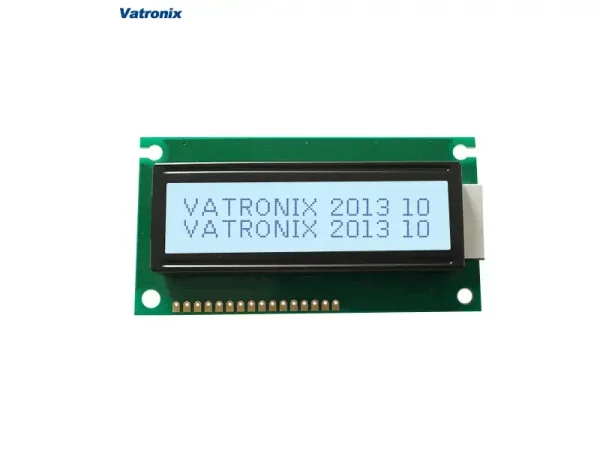

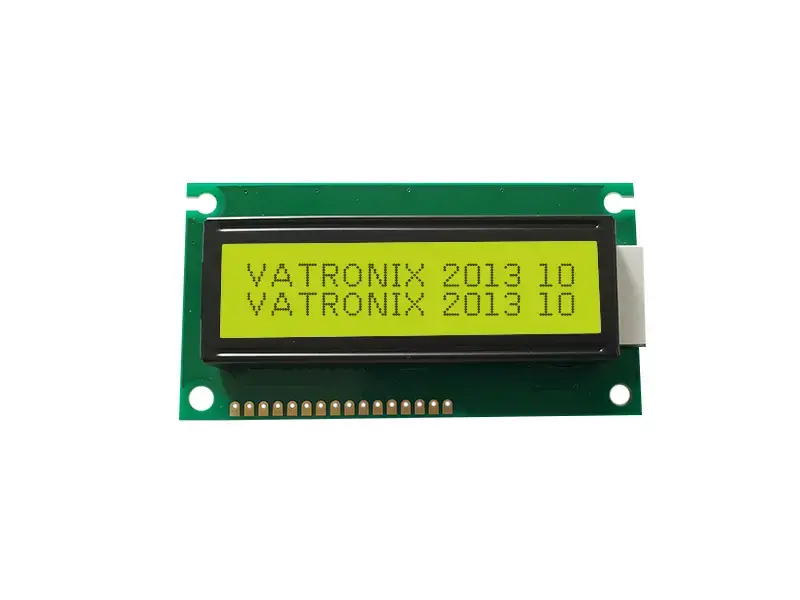

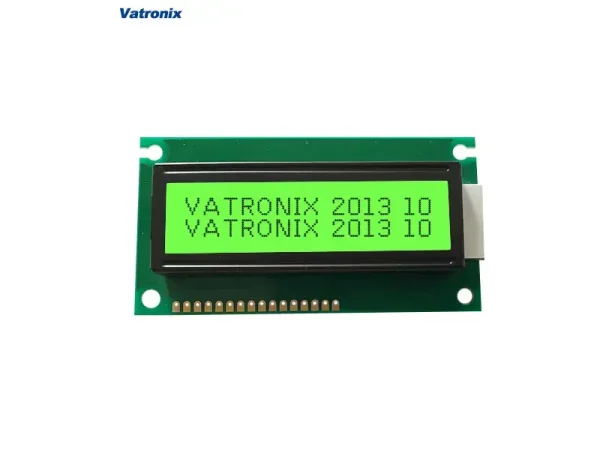

STN 1602 84.0mm x 44.0mm monochrome LCD panel standard screen, 16PIN, displays 2 lines of letters, 16 letters per line. 64.6mm x 16.0mm VA area, STLC780D1 controller, 4/8 bit 6800 interface mode, COB, -20 to +70 degrees Celsius, operating temperature, -30 to +80 degrees Celsius Storage temperature, available in black letters on emerald green background, white letters on blue background, blue letters on gray background, etc.

Share to:

TC1602C2-SDYFSG ,monochrome lcd panel

TC1602C2-SDYFSG ,monochrome lcd panel

TC1602C2-SDYFSG ,monochrome lcd panelTC1602C2-SDYFSG ,monochrome lcd panel

TC1602C2-SDYFSG ,monochrome lcd panel

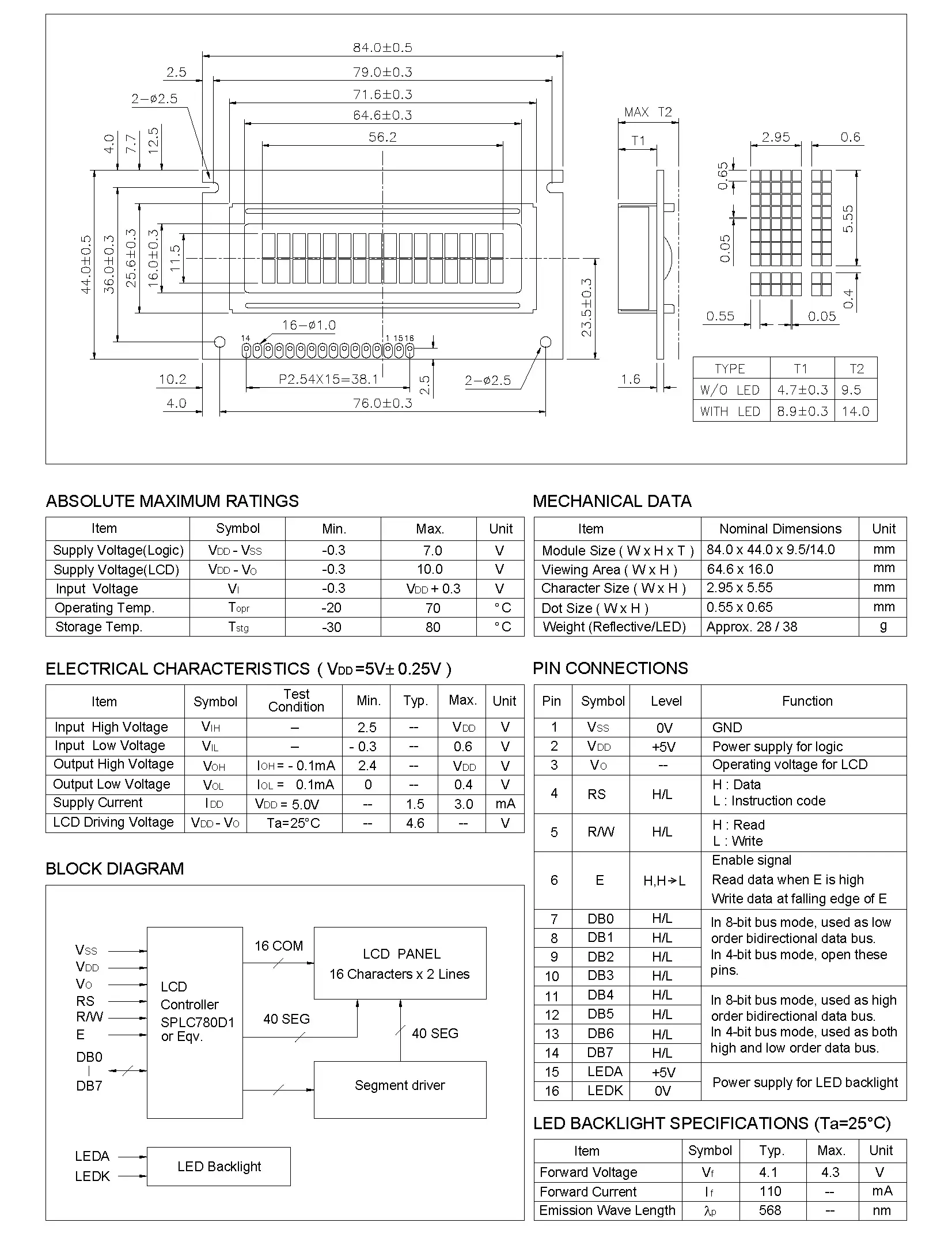

Character 1602
PRODUCT TYPE Character LCD
APPLICATION instrumentation
Display Mode: Positive/ Negative

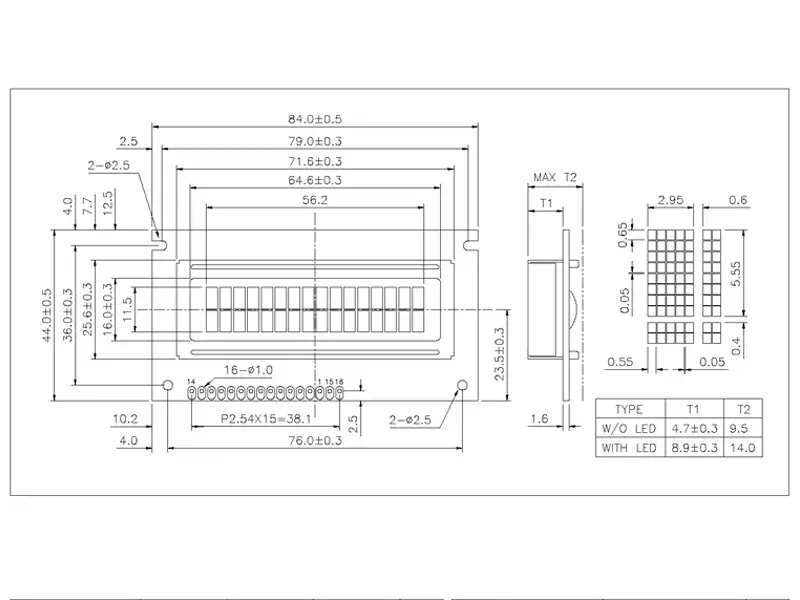

The shape size: 84.0mm×44.0mm×14mm
Effective area size: 64. 6mm×16.0mm
Controller: STLC780D1
Interface pattern: 4/8-BIT 6800
Process: COB
Interface Pins : 16Pins
Operating Temp: -20 to +70 Celsius
Storage Temp: -30 to +80 Celsius
