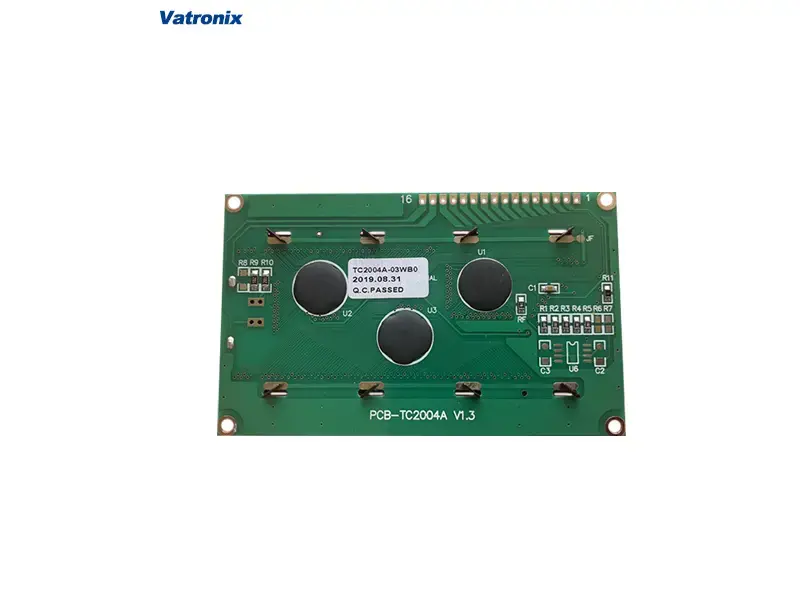

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

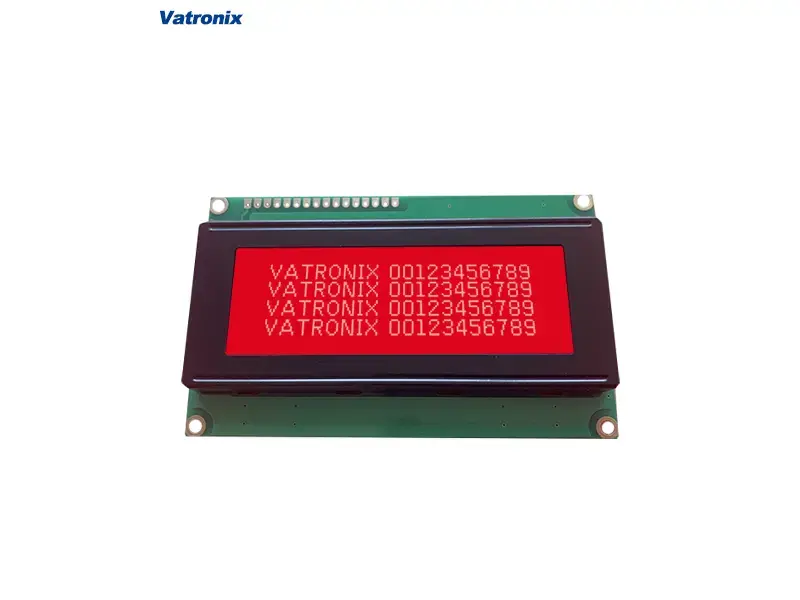

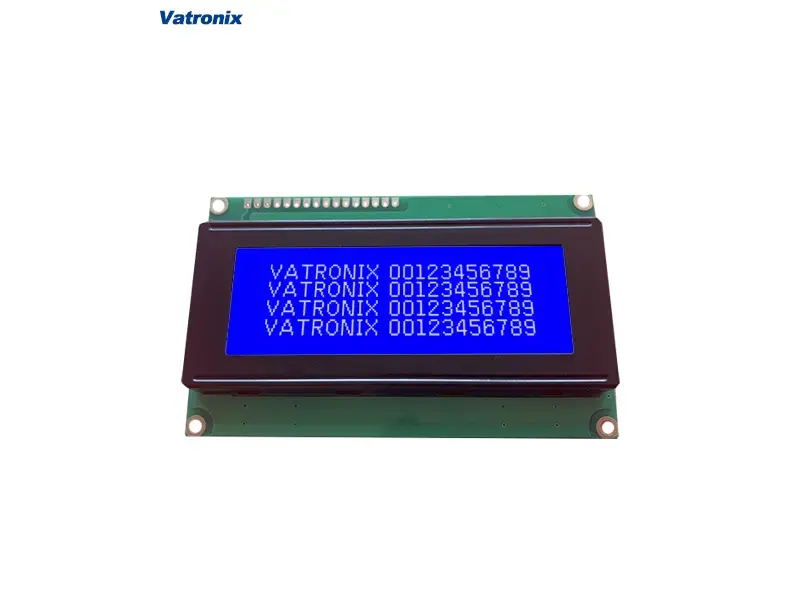

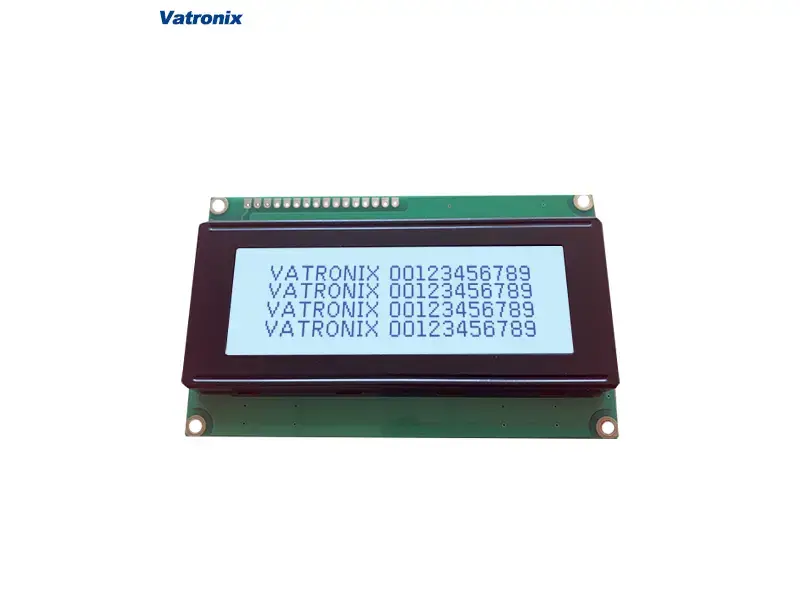

2004 STN, 12864, Character dot matrix LCD module standard screen, 20 letters one line, display 4 lines, STLC780_02 parallel interface, form factor 98.0mm x 60.0mm x 13.1mm, VA area 76.0mm x 25.2mm. 4/8 bit 6800, l6 pin interface pins, -20 to +70 Operating temperature -20 to +70 degrees Celsius, storage temperature -30 to +80 degrees Celsius, blue on gray, white on red, black on green, white on blue, etc.

Share to:

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

PCB-TC2004A-SDBTSW, -dot matrix lcd screen display module

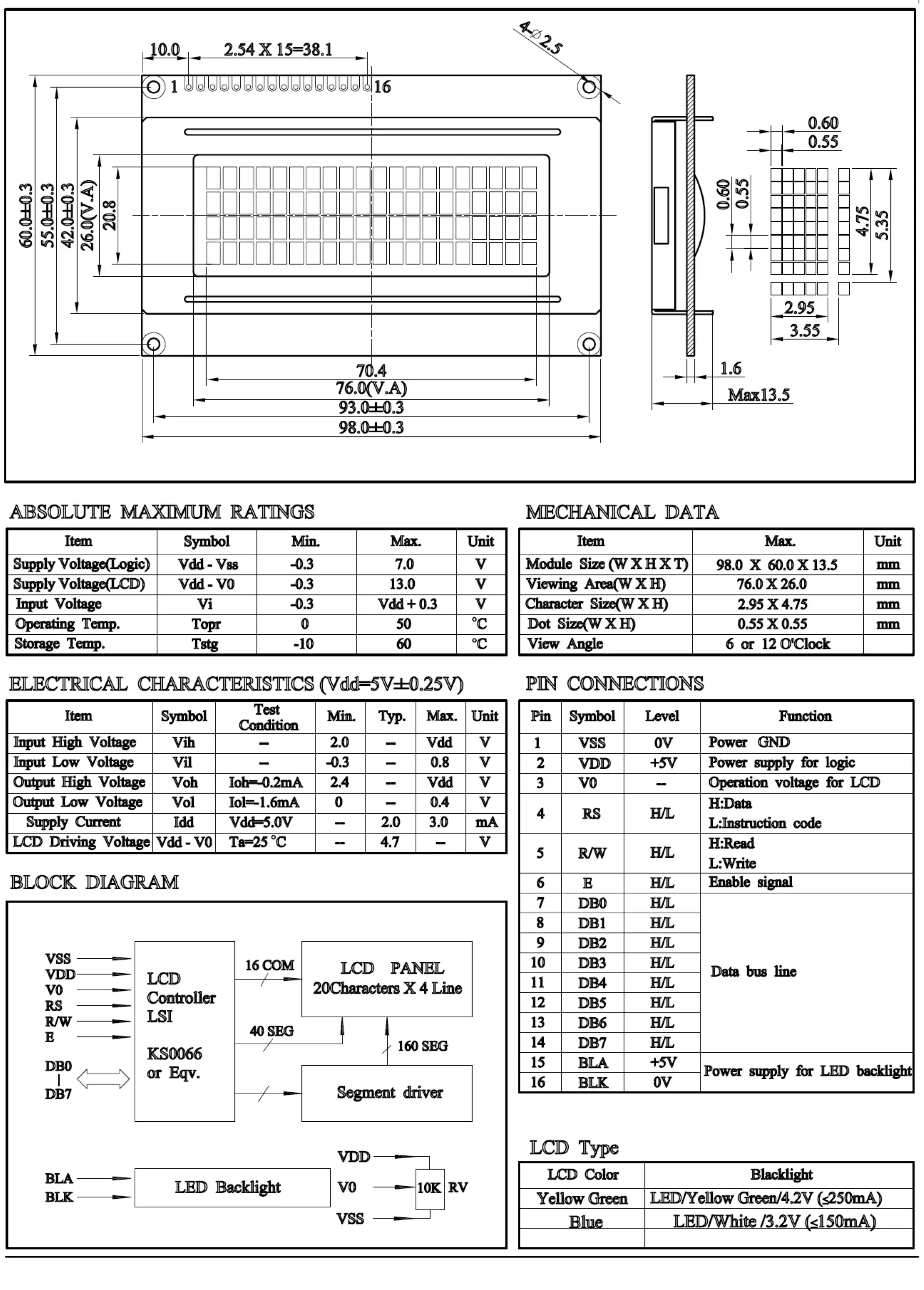

Character 2004
PRODUCT TYPE Character LCD
APPLICATION instrumentation
Display Mode: Positive/ Negative

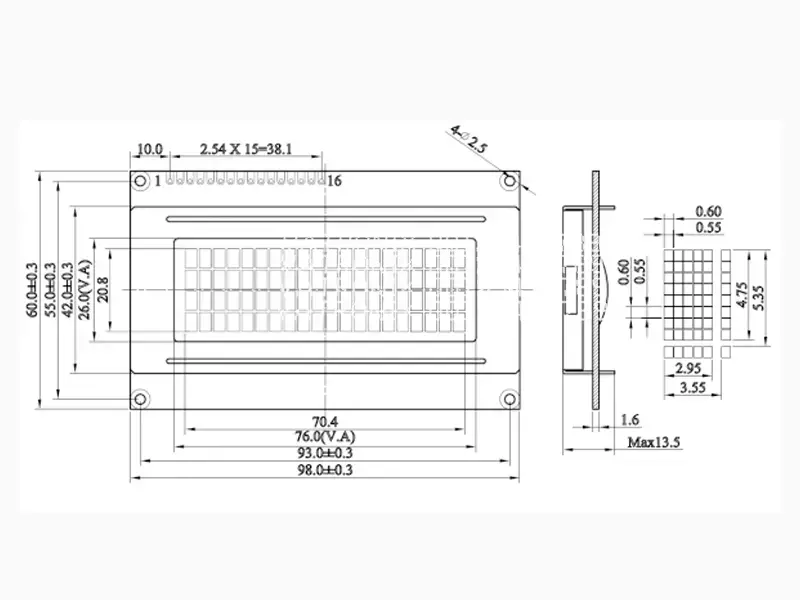

The shape size: 98.0mm×60.0mm×13.1mm
Effective area size: 76. 0mm×25.2mm
Controller: STLC780_02 Parallel interface
Interface pattern: 4/8-BIT 6800
Process: COB
Interface Pins : 16Pins
Operating Temp: -20 to +70 Celsius
Storage Temp: -30 to +80 Celsius
