KNY1602G-FUTFNF
KNY1602G-FUTFNF

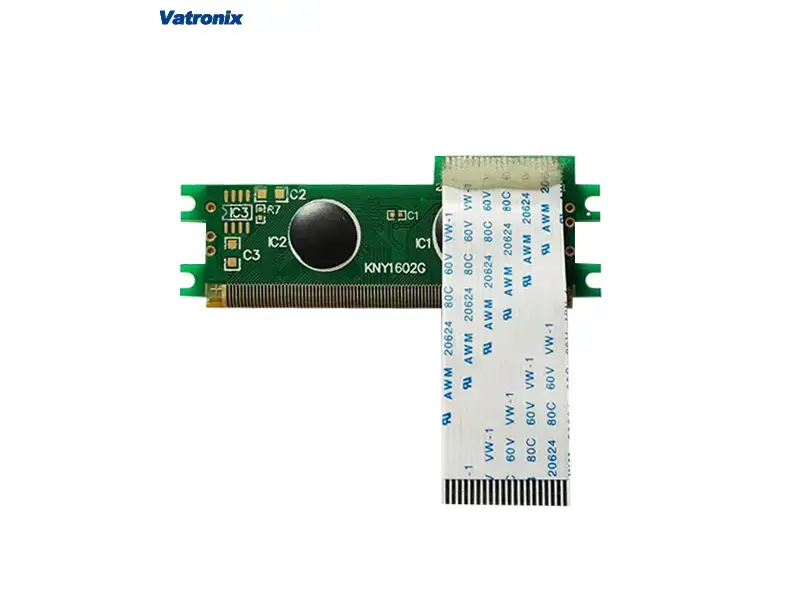

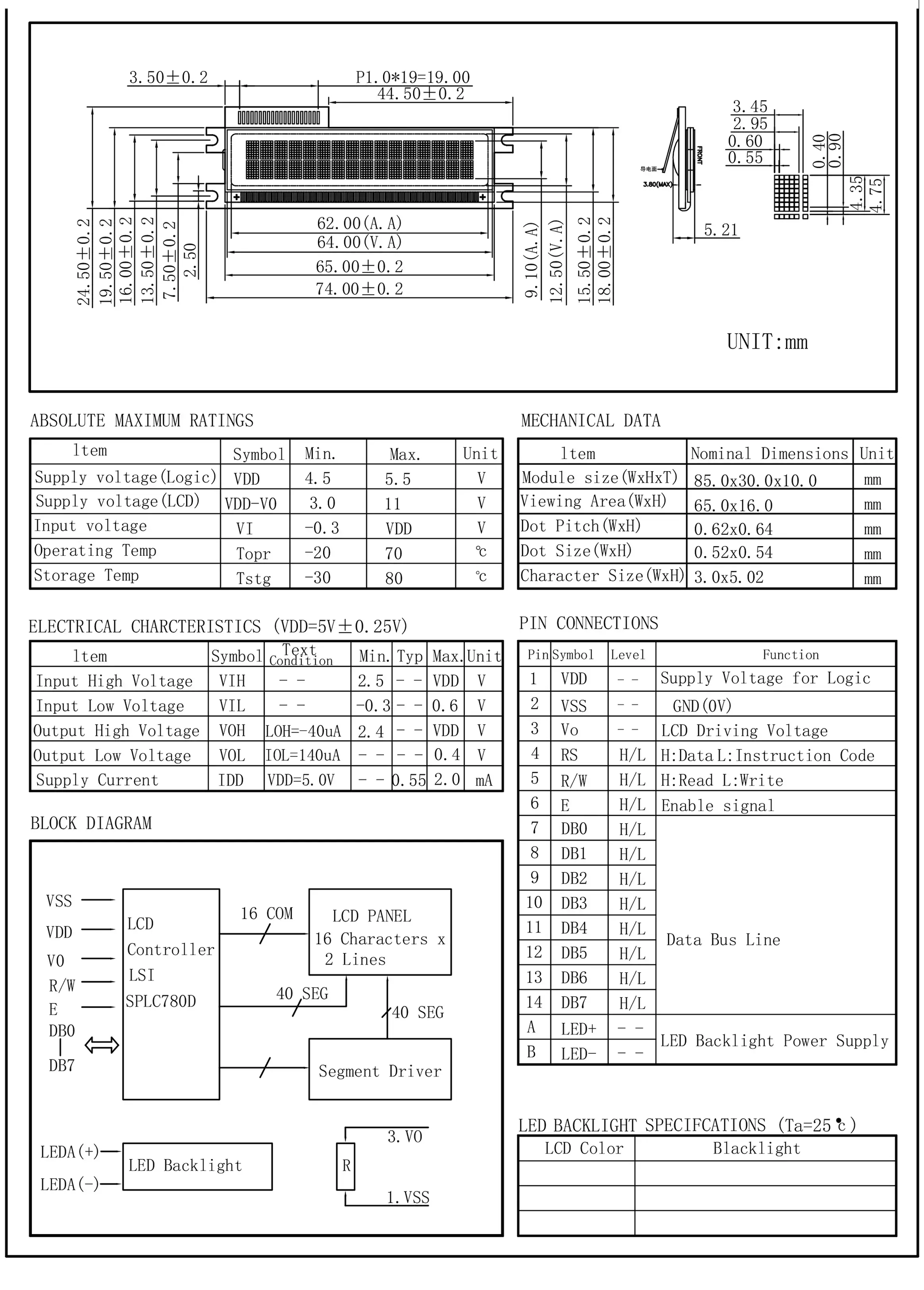

1602 display interface custom monochrome screen, 20PIN STN gray film blue letters, FPC connection, custom characters, displays 2 lines of letters, 16 letters per line, form factor 74.0mm x 24.0mm x 5.21mm. VA area 64. 6mm x 16.0mm, STLC780D1 controller, 4/8 bit 6800 interface mode. COB, -20 to +70 deg C, Operating temperature, -30 to +80 deg C Storage temperature.
Share to:
| Character | 1602 |
| PRODUCT TYPE | Character LCD |
| APPLICATION | instrumentation |

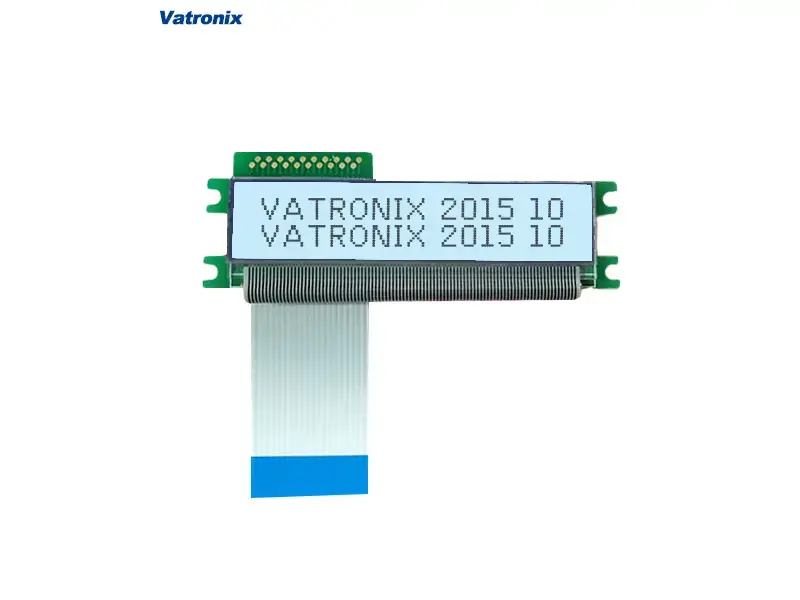

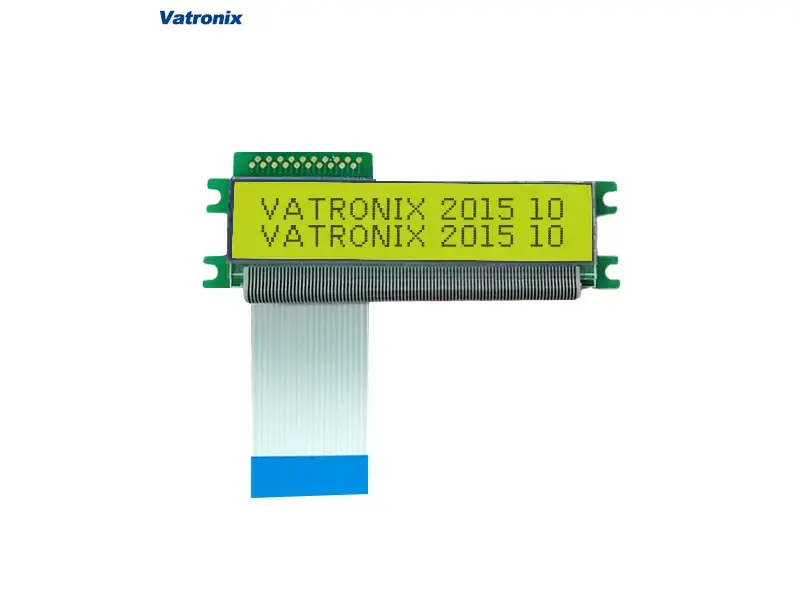

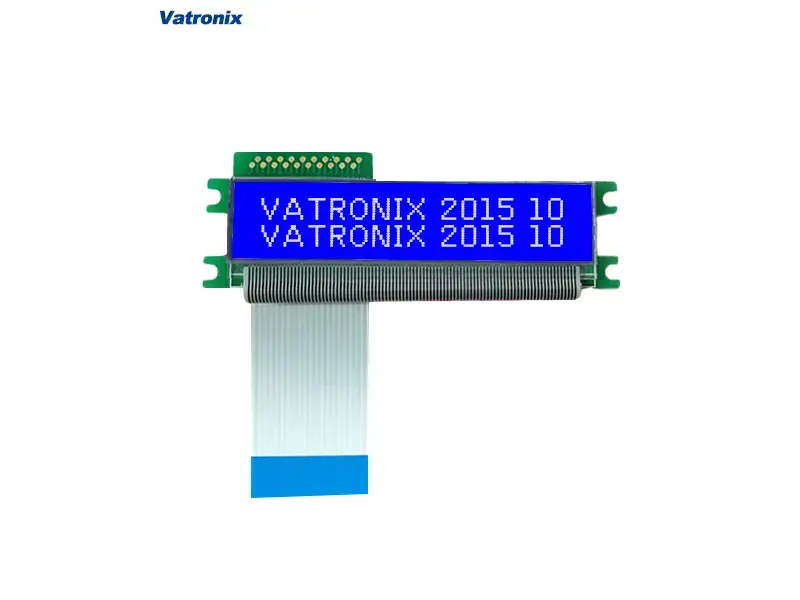

| Display Mode： | Positive/ Negative |

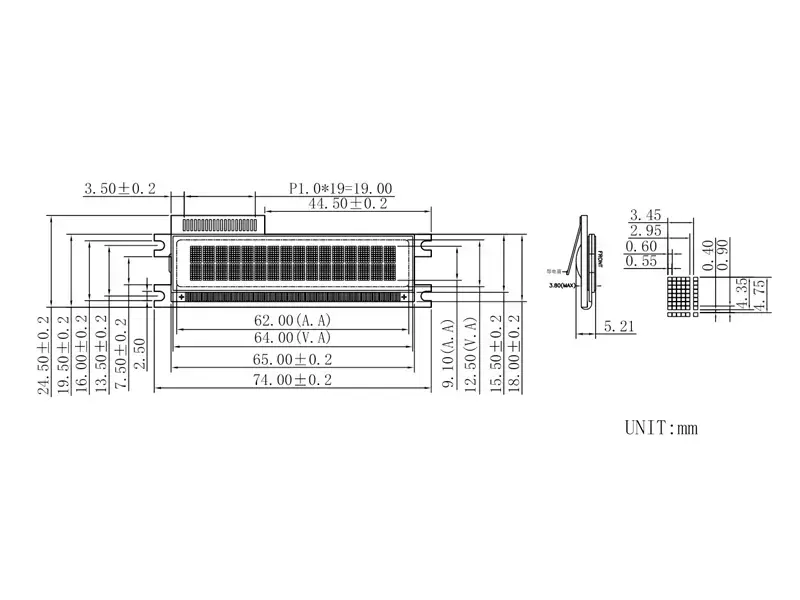

| The shape size： | 85.0mm×30.0mm×14mm |
| Effective area size： | 64. 6mm×16.0mm |
| Controller： | STLC780D1 |
| Interface pattern： | 4/8-BIT 6800 |
| Process： | COB |
| Interface Pins : | 16Pins |
| Operating Temp： | -20 to +70 Celsius |
| Storage Temp： | -30 to +80 Celsius |
