TG10109LZR40G- 10.1-inch touch screen with HDMI

TG10109LZR40G- 10.1-inch touch screen with HDMI

10.1-inch industrial control display
Display mode: TFT

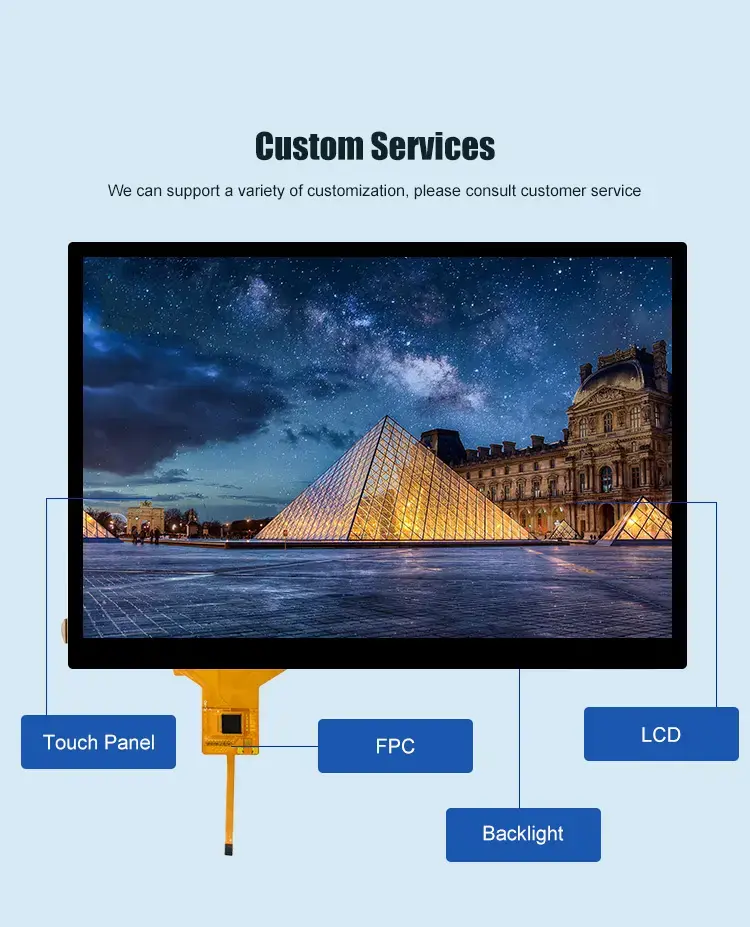

Connection mode: cog+fpc
Interface: 30 pins, 60 pin plug-in type can also be customized according to the requirements of the interface
Driver chip IC package: cog
Working temperature: -20℃~70℃
Storage temperature: -30℃~80℃
led backlight: brightness can be customized sunlight-visible 300cd-2000cd

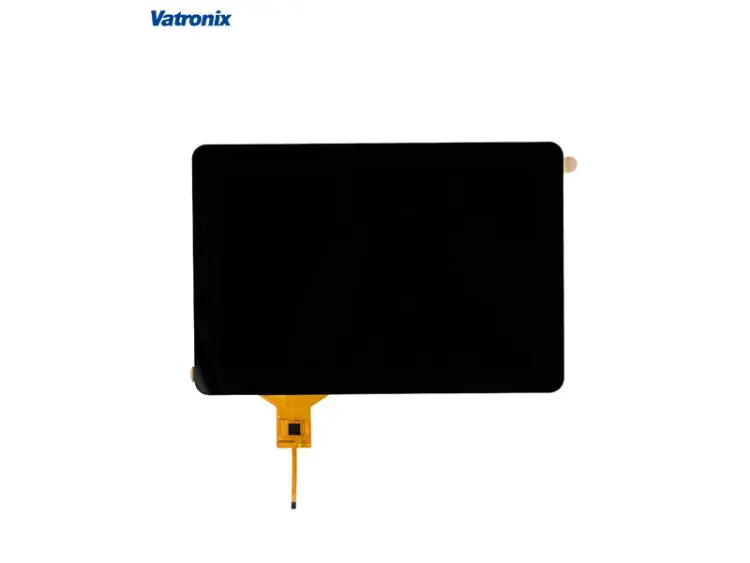

The 10.1-inch display also can be equipped with RTP CTP
The product is widely used in industrial control, — equipment, instruments, medical instruments, household appliances, communications equipment, consumer electronics, etc., 10.1-inch TFT is “Thin Film Transistor” abbreviation, also known as “true color “It belongs to the active matrix LCD, which is a screen composed of thin-film transistors, each liquid crystal pixel is driven by a thin film transistor, behind each pixel four independent thin-film transistors are driving the pixel to emit color light, which can display 24bit color depth of true color. In terms of resolution, TFTs are arranged memorably.

Share to:

TG10109LZR40G- 10.1-inch touch screen with HDMI

TG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMITG10109LZR40G- 10.1-inch touch screen with HDMI

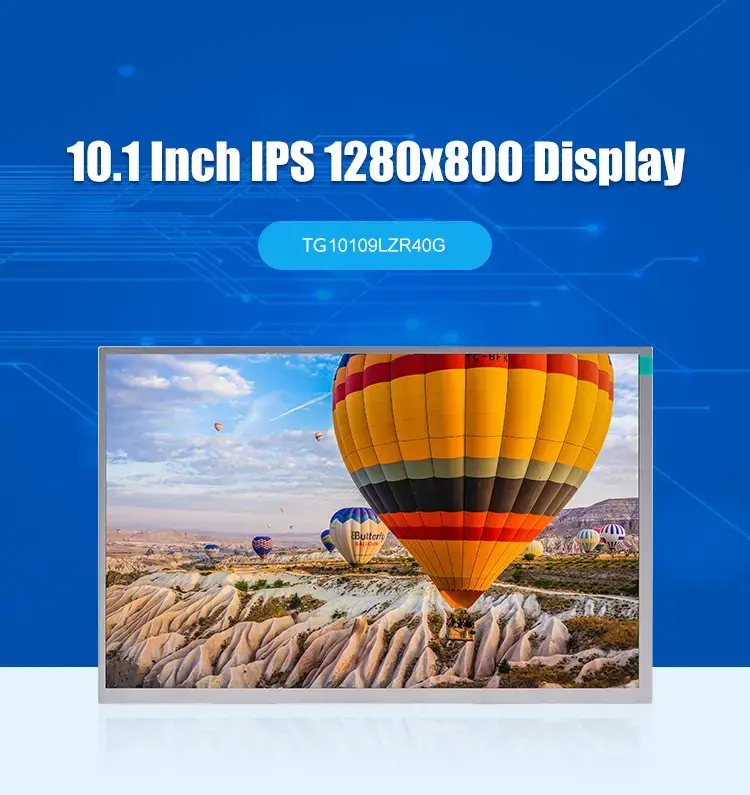

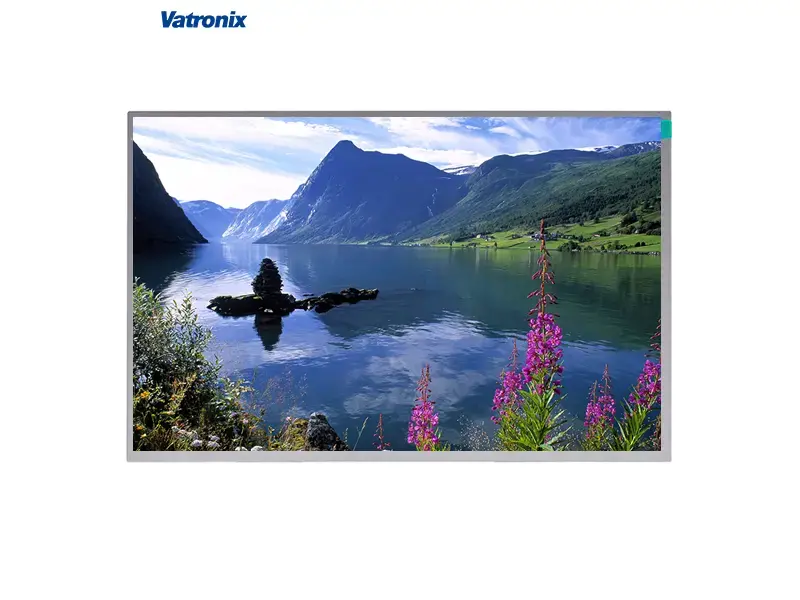

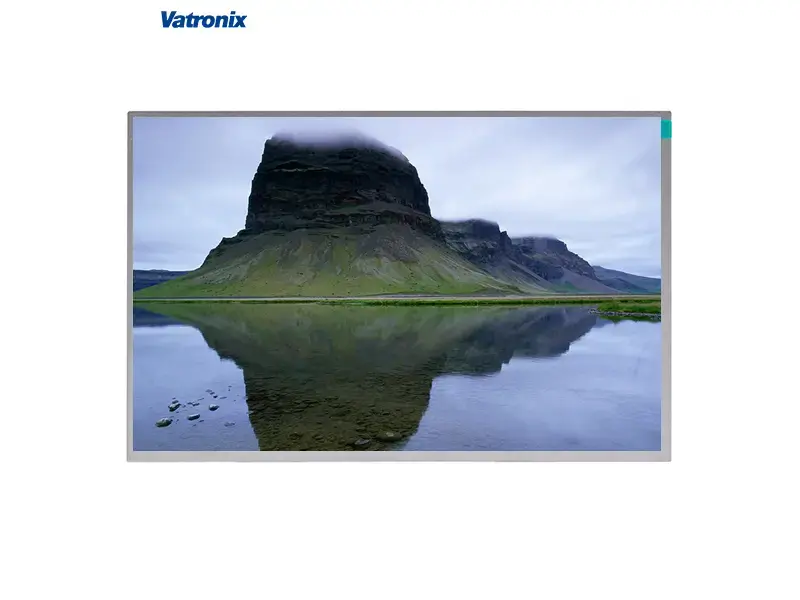

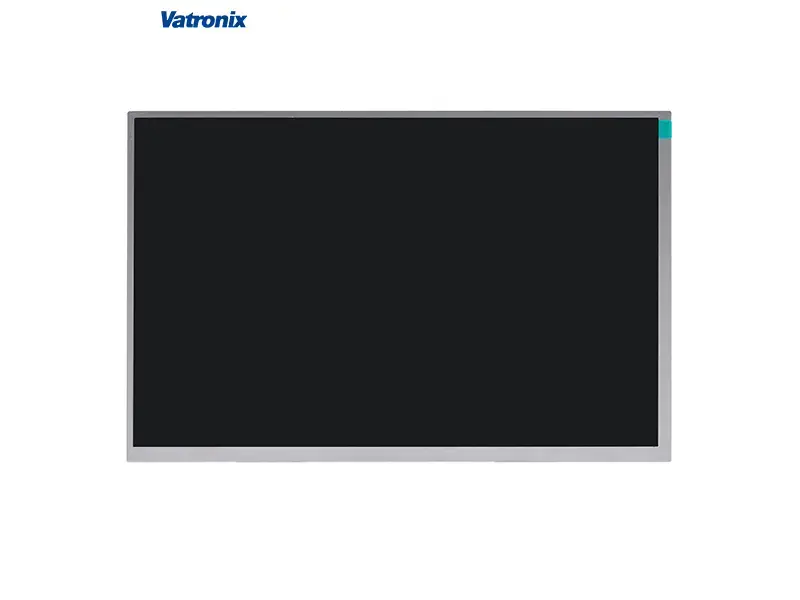

Item Vatronix 10.1 inch ips1280x800 display
Model No TG10109LZR40G
Resolution 1280 x 800

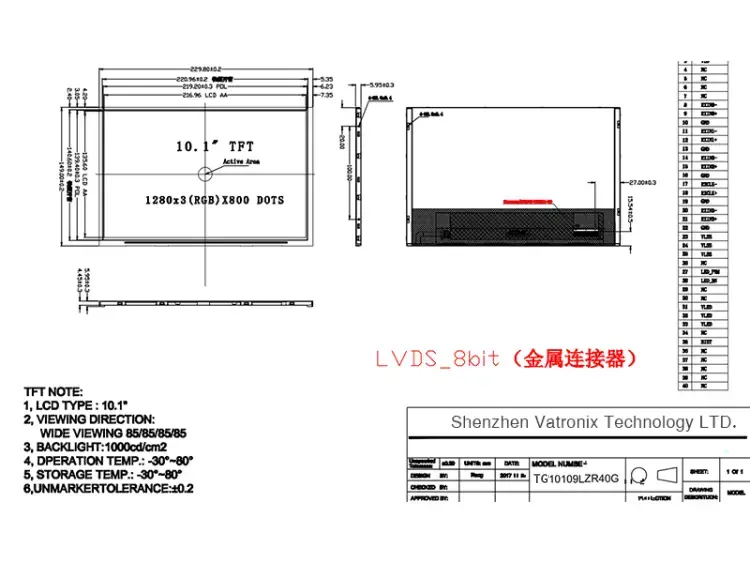

Outline Dimension 229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm) 216.96(W) x 135.60(H)
Interface 8-BIT LVDS Interface
Viewing Angle All
LED life 50000h
Display Mode Transmissive / Normally Black
Operating Temperature -30℃ to +80℃
Storage Temperature -30℃ to +80℃

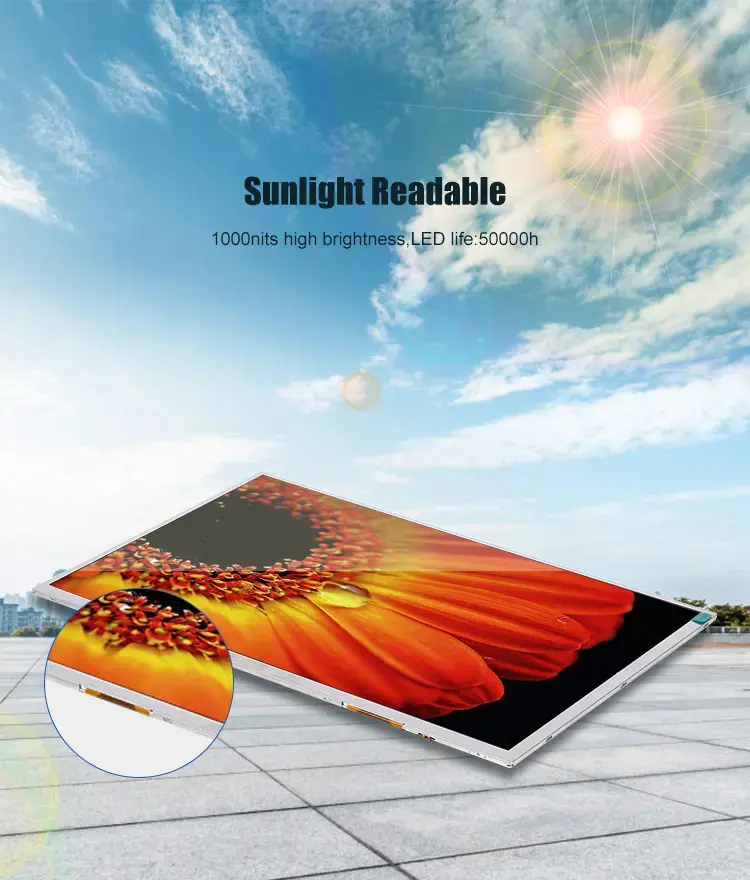

Brightness 1000nits

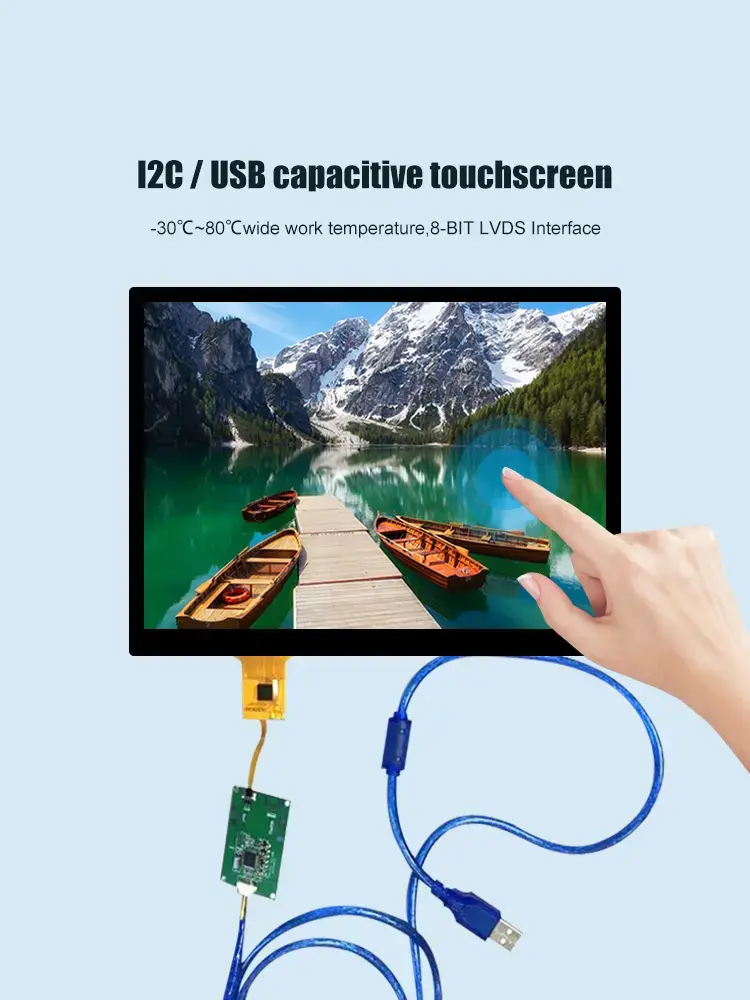

Touch screen I2C / USB capacitive touch screen

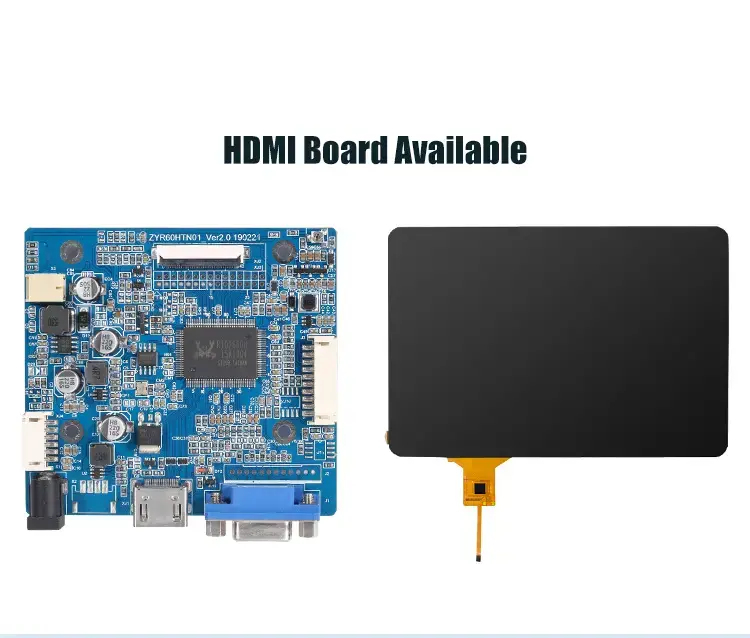

Board HDMI board
