TG01202PY24C 1.2” oled display for smartwatch

TG01202PY24C 1.2” oled display for smartwatch

TG01202PY24C is a 1.2-inch miniature display with 390×390 resolution, IPS wide viewing angle technology and MIPI communication method/SPI interface, which can be applied to smart watches, smart homes, toys, and is especially suitable for customized round case solutions.

Share to:

TG01202PY24C 1.2'' oled display for smartwatch

TG01202PY24C 1.2'' oled display for smartwatchTG01202PY24C 1.2'' oled display for smartwatch

Item 1.2inch AMOLED lcd screen
Model No TG01202PY24C
Resolution 390×390

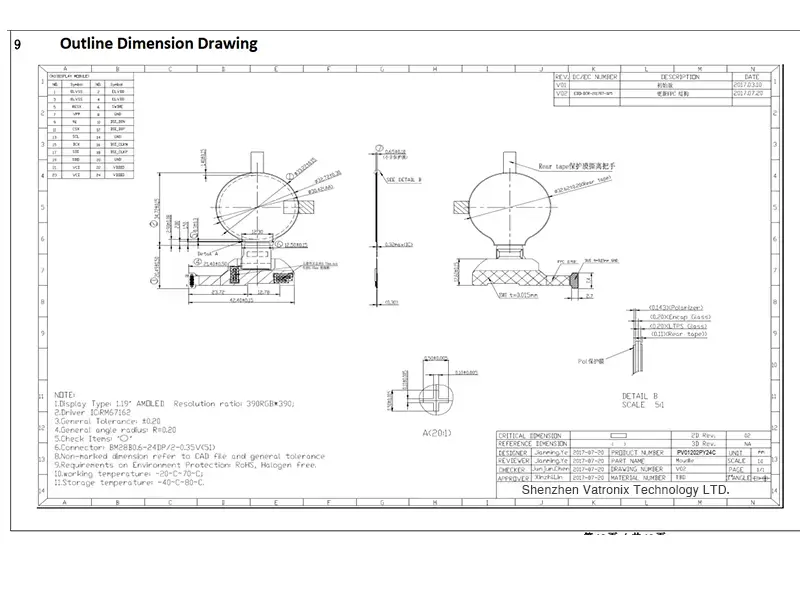

Outline Dimension 33.22(W)×34.72(H)×0.68(T)
Active Area(mm) φ30.42
Brightness 350nits
Viewing Angle Free
Interface MIPI /SPI
Warranty 12 months
Driving IC RM67162
Display Mode AMOLED
PIN 24
Operating Temperature -20~60
Storage Temperature -30~70



TG01202PY24C 1.2'' oled display for smartwatch

390×390
IPS
wide viewing angle
free viewing angle
small / Tiny display
MIPI /SPI interface
